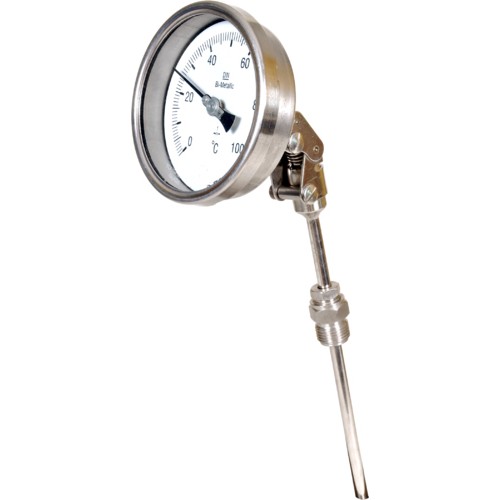

Bimetallic Temperature Gauge  finds wide application in food and beverage industries. Highly reliable the rugged bimetal helix is properly heated and coated with viscous silicon to improve temperature transmission and minimize pointer oscillation. A popular temperature measuring instrument, it finds wide application in hot water boiler, power plant, domestic & industrial heating system and pharmaceutical industry.

Standard Features:

• Size: 40, 50, 63mm, 100mm & 150mm

• Case & Bazel (IP-65): S.S.-304 Press fit / Snape Action Bayonet Type

• Stem & Bulb: S.S. -316

• Stem Length: 100 to 1000mm

• Accuracy: ±1% of fsd.

• Mounting: stem, center back & every angle

• Ranges: (-) 30°C to 50°C to 500°C

Construction Features:

• Dial Size: 63mm. 100mm & 150mm

• Accuracy: 4-1.6% of lull scale

• Case & Bezel (IP-65): SS 304 Snap Action Bayonet type & SS 304 Press Fit Type

• Temp. Element: Wounded coil of Bimetal

• Stern & Bulb: SS 304, SS 316 (6mm. 8mm, 10mm & 12mm)

• Stem Length: SS 304, SS 316(iipto300mm)

• Dial: Aluminum white painted with 270 degree black scale marking

• Pointer: Brass with black finish
