DIAL SIZE

:

63mm, 100 mm, 150 mm

TEMPERATURE

:

Upto 150 deg. C with silicone oil.

ACCURACY

:

+/-1% of range span

SENSING ELEMENT

:

AISI 316 SS / optinal tantalum.

 DIAPHRAGM PROTECTION

Standard Tefflon (PTFE)
Optional: tantalum for Corrosive / silver for chlorine (on request).

SEALING MEDIUM

:

Silicone oil.

CASE & BEZEL

:

Cast aluminum weatherproof stove enameled black With screwed inner bezel of abs plastic / SS 304.

BOURDON

:

AISI 316 SS / on request phosphor bronze.

MOVEMENT MATERIAL

:

Brass or AISI 304 SS

BLOCK / SOCKET

:

Brass / AISI 316 SS

CONNECTION

:

1/2" BSP screwed (standard), other Connection / flanges on request.

MOUNTING

:

Direct with bottom / back entry.

POINTER

:

Micrometer zero adjustment type.

CAPILLARY

:

3.5mm OD solid drawn SS capillary.

TOP CHAMBER

:

AISI SS 304.

BOTTOM CHAMBER

:

Standard AISI 316 SS . Optional : Tefflon coated.

RANGE

:

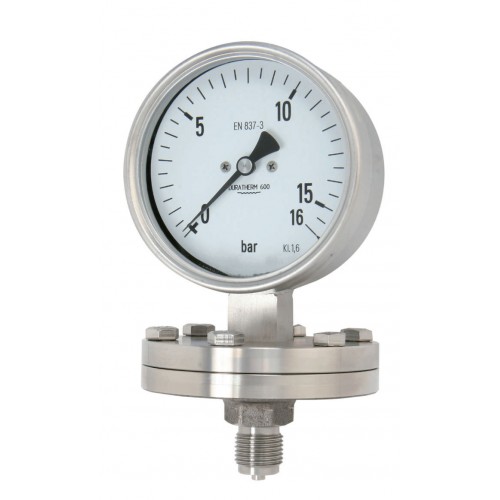

0 , 1, 1.6, 2.5, 4, 6,7, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600.kg/cm2. Vacuum & compound: -760 mmhg. Accessories available: safety glass, electric Contact (only in 100 mm & 150 mm), glycerine filled, All types of flange such as ? " 150 lbs, 1" 150 Lbs, 2" 200 lbs, 300 lbs will available in neck type Sealed diaphragm gauge.
