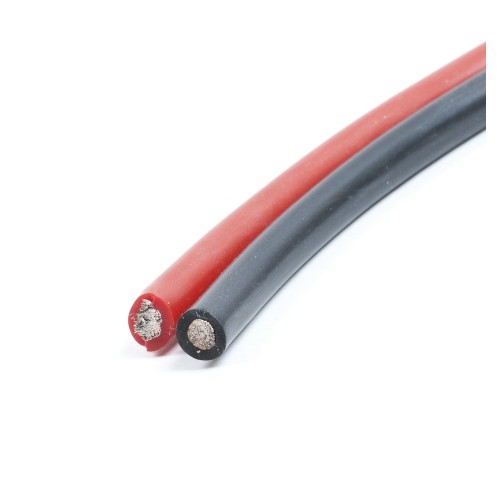

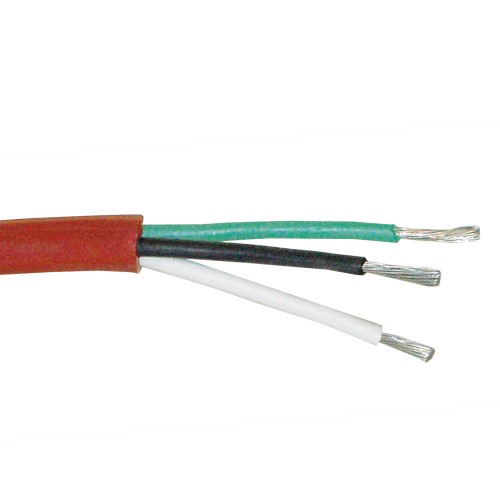

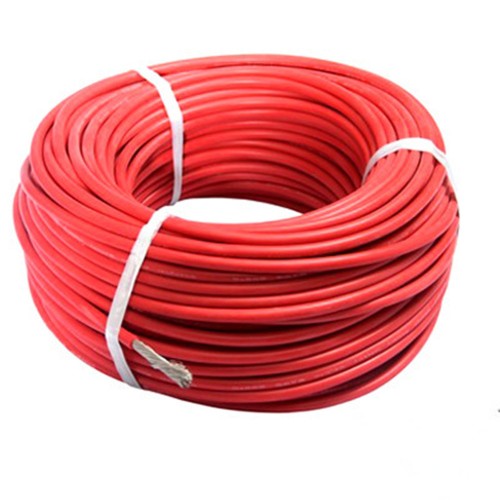

Silicone cables are characterized by their high temperature resistance up to + 250°C combined with permanent flexibility. Due to the reticulated molekular structure keep their original form even with temperature influence. Silicone cables are halogen-free. Furthermore, it is the only material on silicium basis treated by us with which the maintenance of function in case of fire can be reached. Silicone cables are for example used in steel works, rolling mills and foundries for the internal wiring of lamps or in glass and ceramic treatment.
FEATURES
Superior heat resistance, cold resistance
Excellent resistance and flexibility
Mechanical strength is enhanced by glass braiding
Excellent electrical properties suit for high-voltage
Some are produced by silicone rubber with flame-retardant
SPECIFICATION
|
CONDUCTOR |
SILVER PLATED COPPER , NICKLE PLATED COPPLER , BARE COPPER ETC. |
|
MIN. BENDING RADIUS |
7.5 X OD |
|
RADIATION RESISTANCE |
2 X 107 CJ/KG |
|
TEMPERATURE |
-50°C. TO 250°C. |
|
COLOUR |
ALL ELECTRONIC COLOUR |
|
VOLTAGE |
RANGING FROM 600V ~ 40KV |
|
WIRE GAUGE |
FROM 12 AWG ~ 22 AWG OR AS PER CUSTOMER SPECIFICATION |
