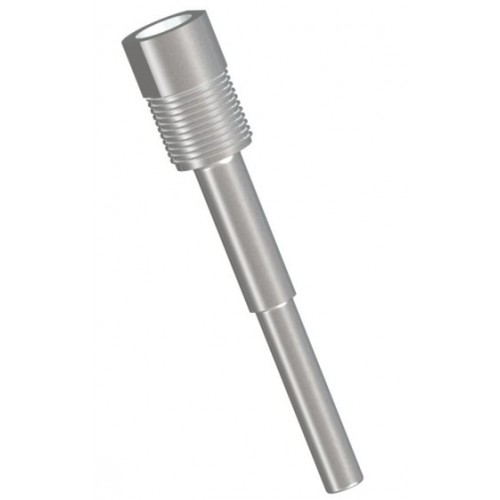

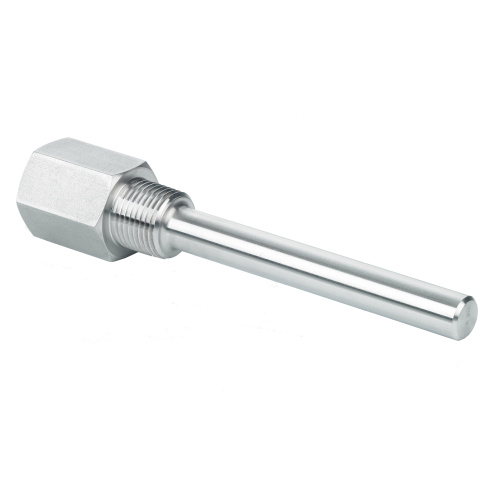

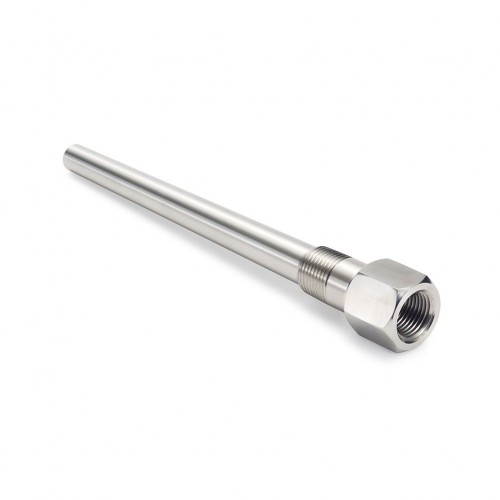

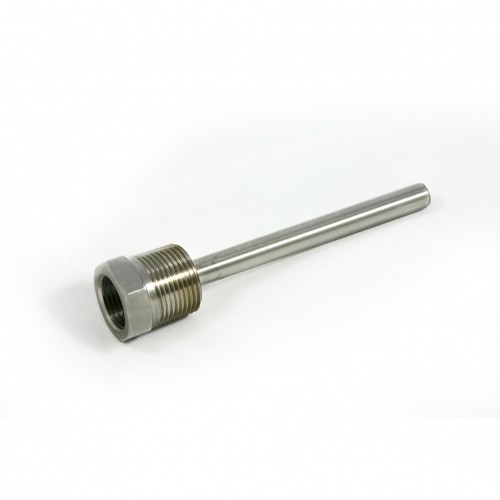

Threaded Thermowells are threaded into a process pipe or tank, allowing for easy installation and removal when necessary. While this is the most common mounting method, it has the lowest pressure rating of the mounting configuration options
Key Features :

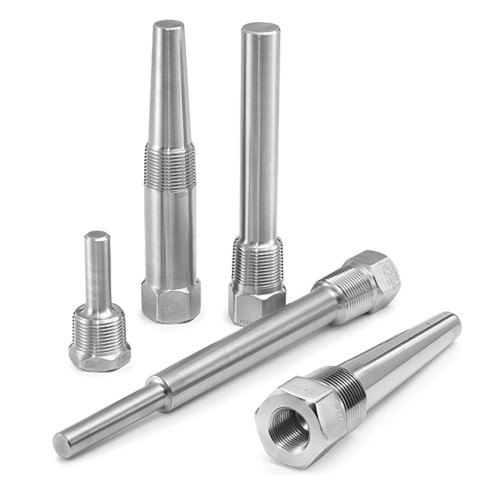

Straight, Stepped or Tapered designs
One piece bar stock
Wide selection of sizes, material and dimensions
Stamped with date code, material and heat numbers
WAKE Frequency calculation
CONSTRUCTION
|
TYPE |
THREADED |
|
SHANK STYLE |
STRAIGHT, TAPERED , STEPPED |
|
MATERIAL |
CS, SS304, SS316, SS316L, SS310, INCONEL 600, INCONEL 601 INCOLOY 800, MONEL, HASTELLOY |
|
INSTRUMENT CONNECTION |
½" BSP / NPT OR M20 X 1.5 * *OTHER SIZES AS PER CUSTOMER SPECIFICATION |
|
PROCESS CONNECTION |
½"/ ¾" /1" BSP / NPT OR M20 X 1.5 *OTHER SIZES AS PER CUSTOMER SPECIFICATION |
|
IMMERSION LENGTH |
UPTO 4000 MM |
|
OPTIONAL |
MOUNTING SOCKET , PLUG OR CAP WITH CHAIN , PTFE OR OTHER COATING |
Application
Threaded thermowells provide safe and reliable pressure measurement, while meeting challenging applications such as:
Process Market:
Chemical and Petrochemical Plants
Water and Wastewater pressure Control
Medical and Life Sciences:
Pharmaceutical / Biotech
Food and Beverage
